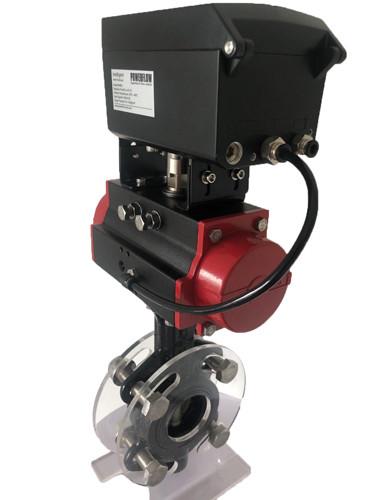

Piezo Technology Electropneumatic Smart Valve Positioner

Product Categories
POWERFLOW CONTROL CO,. LTD.
Contact Now

Piezo Technology Electropneumatic Smart Valve Positioner

Brand Name : POWERFLOW

Model Number : IP6000

Certification : NEPSI, ISO9001, HART, CE

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Packaging Details : CTN, 21*26*16CM

Technology : Piezo

Feedback Signal : 4 - 20mA

Min. operating current : 3.6mA DC

Weight : 2KG

Protection Class : IP66

Basic Error : ±0.5%

Contact Now

IP6000 Series Feedback Smart Valve Positioner with Piezo Technology

​1. Product Description

IP6000 Series Smart Valve positioner is optional in HART communication and Exia explosion proof. It's with piezo technology. The piezo valve is purchased from Hoerbiger Germany with CO certificate for offering top class product for all of our customers.

​2.Technical Datas

Material Aluminum
Set-point Signal 4 - 20mA DC
Min. Operating Current 3.6mA DC
Vibration Resistance

0.15mm,10Hz-60Hz,20 cycle/axis

20m/s2,60Hz-500Hz,20 cycle/axis

Recommended range for control valve

≤ 20 m/s2,no resonance peak
Ambient Temp. -20 - 70℃
Gas Source Requirement ISO 8573-1 Class 3
Steady State Air Consumption ≤ 0.4 L/min
Supply Pressure 0.14 - 0.7MPa
Flow 55 L/min (Sup=0.14MPa)
Stroke Control Range Linear 10-100mm; Rotary 30-100°
Electrical Connection M20*1.5
Pneumatical Connection G1/4
Explosion Proof Ex ia IIC T4/T6
Protection Class IP66
Weight 2KG

3. Product type selection

Piezo Technology Electropneumatic Smart Valve Positioner

Remarks: Power off State option is safe by default. There is no pressure gauge for the type of seperate install positioners.

4. Principle Block Diagram

Piezo Technology Electropneumatic Smart Valve Positioner

5. Additional Software Functions

  • Calibrating the set-point signal
  • Setting for dead band zone
  • Sealing function for position controller
  • Limit of the mechanical stroke range
  • Selection of the transfer characteristic between set-point valve and stroke
  • Selection of signal direction
  • Selection of stroke direction
  • Factory settings
