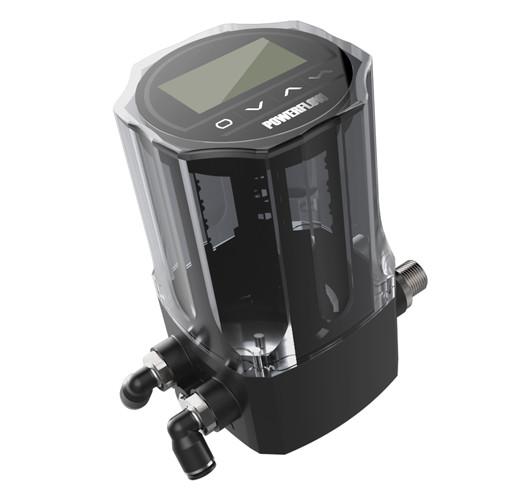

Name: Explosion Proof Digital Valve Positioner
Brand: POWERFLOW
Price: 1 USD

Brand Name : POWERFLOW

Model Number : 1880

Certification : ISO9001. CE. Nepsi. ROHS

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Packaging Details : CTN, 25*21*16CM

Material : PC, PA6-GF30, SI

Power Supply : 24V DC ±10%

Set-point Signal : 4-20mA DC or 0-20mA

Ambient Temp. : 0 - 70℃

Stroke Control Range : Linear 5 - 30mm

Explosion Proof : Ex nA IIC T4

Contact Now

1880 Series Explosion Proof Intelligent Electro-pneumatic Valve positioner with OLED Display

1. Product Description

1880 series intelligent valve positioner is compact designed controller for integral pneumatic control valves.

The product is easy to operate and has rich software functions. It can easily be operated via the OLED display and keypad.

The positioner adjusts the valve position quickly and accurately through detecting the position sensor signal.

2. Basic advantage

3.Technical Datas

Material	PC,PA6-GF30,SI
Power supply	24V DC ±10%
Set-point signal	0/4-20mA
Control medium Dust concentration Particle density Pressure condensation point Oil concentration	Neutral gases, air DIN ISO 8573-1 Class 5 (<40μm particle size) Class 5 (<10mg/m3) Cass 3 (<-20°C) Class 5 (<25mg/m3)
Ambient Temperature	0-70°C
Pneumatic Connection	Plug-in hose connector G1/4(internal Φ6mm)
Electrical Connection	M12 3-pins B-coded(cable ø 4-6mm) M12 4-pins D-coded(cable ø 4-6mm)
Supply Pressure	3~7 bar, specific values depending on the actuator
Air Flow Rate	17 L/min
Stroke Control Range	Linear 5-30mm
Installation	As required, Preferably with actuator in upright position, Screw.
Protection Class	IP66
Power Consumption	<5W
Explosion Proof	Ex nA IIC T4

4. Structure

Explosion Proof Digital Valve Positioner

5. Product type selection

Explosion Proof Digital Valve Positioner

Remark:

The products is only used for single acting linear stroke actuator. It is suggested to match the actuator of 40-100mm internal gas chamber diameter.

6. Dimensions

Explosion Proof Digital Valve Positioner
